LifeBasis 5 in 1 Stud Finder Wall Scanner Stud Beam Detector for Metal, Wood, Pipe, AC Wires, Measuring Tool for Length, Area, Volume
LifeBasis 5 in 1 Stud Finder Wall Scanner Stud Beam Detector for Metal, Wood, Pipe, AC Wires, Measuring Tool for Length, Area, Volume
Couldn't load pickup availability
LifeBasis high accuracy stud finder is equiped with a smart chip and four high-precision sensors, can locate wood studs, metal pipes, and live AC wires with precision using deep and standard scanning options. This wall scanner enables a wide range of scan modes, including stud scan, metal scan, AC wire scan(, moisture scan, distance area, and thermal image scan, meets various measurement needs.
Why Choose LifeBasis 5 in 1 Stud Finder?
Accuracy and Realiablity
LifeBasis stud finder is equipped with a smart chip and features four high-precision sensors. Using scientific measurement and calculation methods, it can quickly and accurately locate the edge and center of metal, studs, joists, pipes, and live AC wires hidden behind walls, floors, and ceilings, saving you time and effort.
Multifunctional Operation
LifeBasis multifunctional measuring instrument enables a wide range of scan modes, including stud scan(20mm/38mm), metal scan(100mm max), AC wire Scan(12-1000V AC 50/60Hz), moisture scan(wood 5%-50% ), distance area(0.05-40m), and thermal image scan(-20℃~+1000℃). One detector meet your various measurement needs.
Thermal Imaging Module
LifeBasis stud finder detector is equipped with a thermal imaging module. The thermal imager has a 32x32 Infrared image resolution. It offers an extended temperature range of -20°C to +1000°C and a thermal sensitivity of 200mk, allowing for precise temperature measurements and capturing temperature changes, easy to check abnormal points. You can also take and store photos.
Easy to Use
LifeBasis wall scanner is equipped with a 2.4-inch LCD color screen, with two operation modes of key and touch button. It also has voice broadcast and visual alarms, allowing you to easily understand the test results. The 1000mAH built-in lithium battery can measure about 5,000 times at a time. It is a good helper for you to measure various data.
LifeBasis Multifunctional Stud Finder Specification
Weight: 2.12 Ounces （0.6kg）
Size: 5.91 x 3.94 x 1.77 Inches
Temperature Measuring Range: -20~+1000℃
Emissivity: 0.01-1( default 0.95 )
Infrared Image Resolution: 1024 Pixels (32x32)
Pixels Image Display Resolution: 240*320
Thermal Sensitivity: 200mk
Field Angle: 33℃
Wood Range: 5-50% (Accuracy: +/- 2%)
Building Materials Range: 1.5-33% (Accuracy: +/- 2%)
Measuring Pen Induction Range: 12-1000V AC 50/60 Hz
Packing List
MK2301 Multifunction Stud Finder *1
Thermal Imaging Module *1
USB Cable *1
User Manual *1
Storage Box *1
Customer Reviews

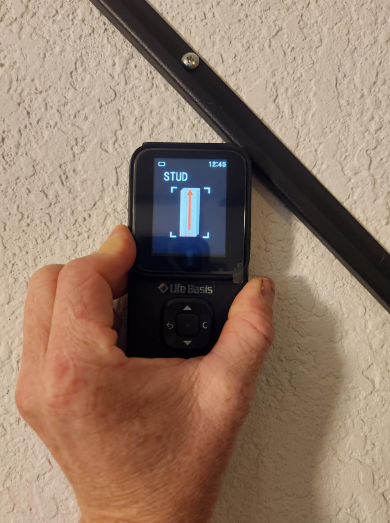

This is more than a typical stud finder. It does function very well to find a variety of items hiding behind walls...like studs, metal, wires, etc. I've also used the moisture tester. Very easy to measure moisture with 2 prongs. Came in handy to show me when the moisture level in my treated wood was acceptable to be stained. It also has an infrared attachment. I have not used it yet but looking forward to it. Many other features as well. This tool replaces a lot of other tools.
I needed an upgrade to my measurement toolbox and decided on this unit since it appeared to do it all and it does. What I was most impressed with was the temperature readings. I could superimpose video with the heat readings and was able to easily find leaks by windows and doors.
